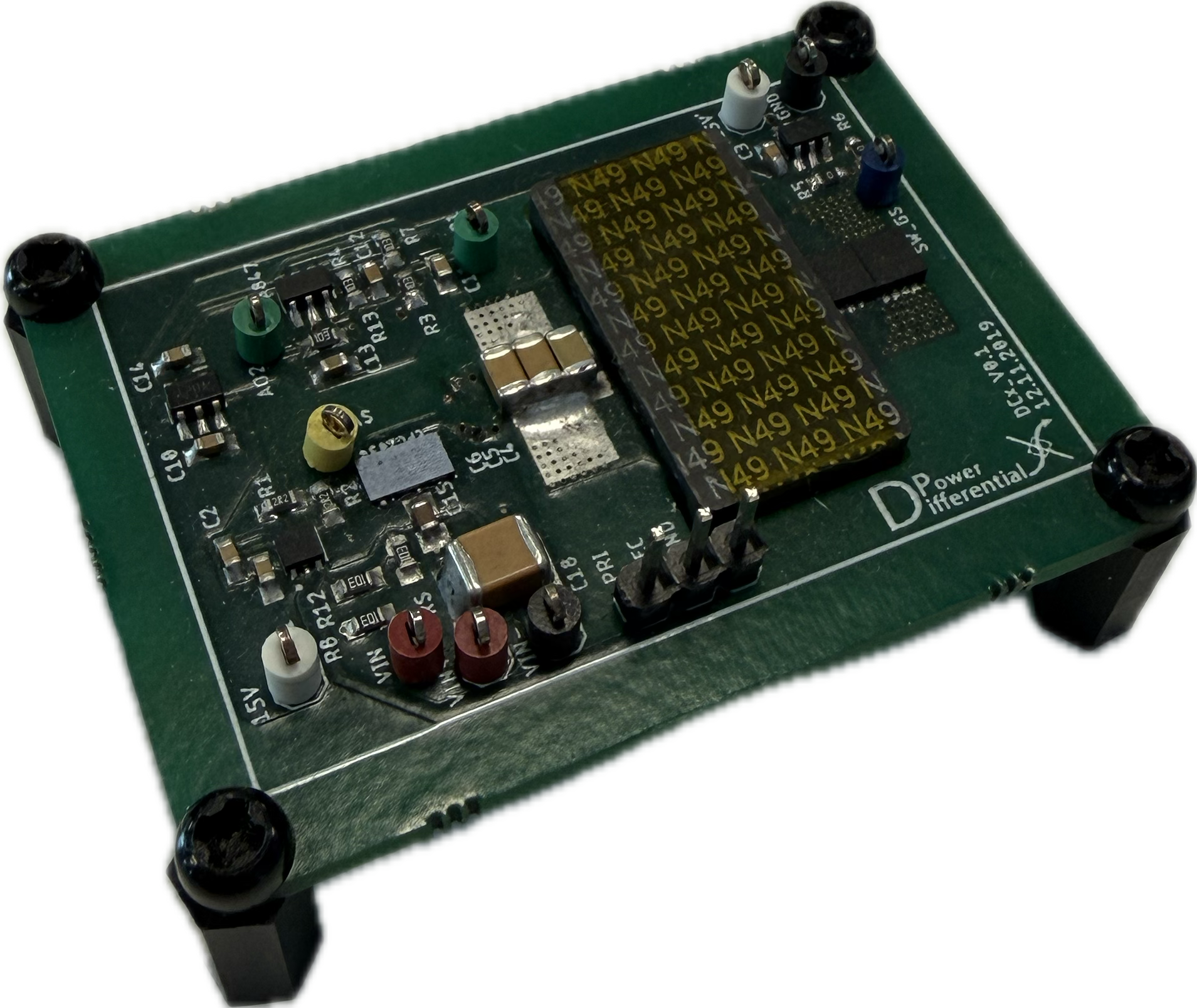

Proof of Concept - 2019
First successful SWT validation using a PCB transformer
- Input Voltage: 40V
- Output Voltage: 4V
- Output Current: 30A
- Peak Efficiency: 97.22%
- Full Load Efficiency: 95.46%
Our Projects
Explore our latest deployments and see how our power conversion systems perform in high-demand environments.
DC-DC Converters

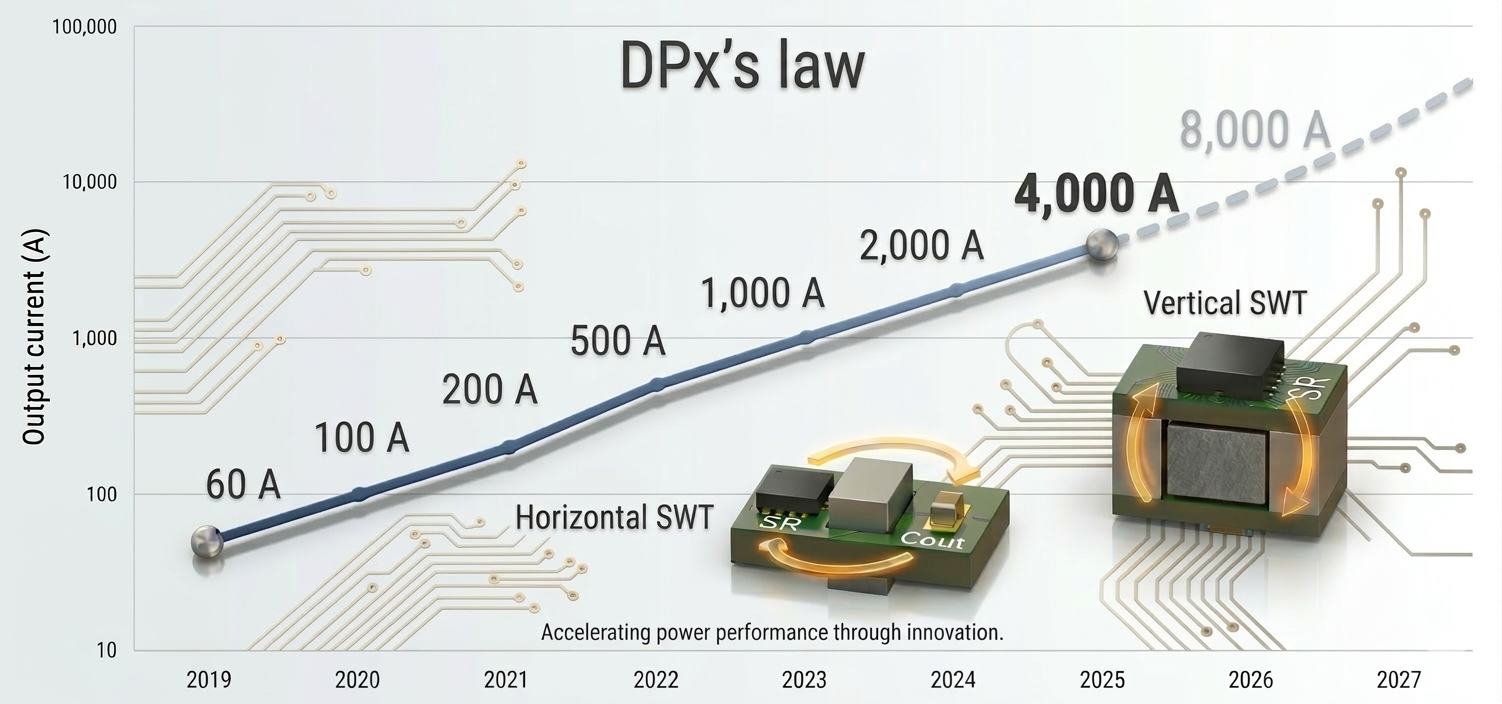

The DPx Law showcases our evolution from our founding in 2019, when we first demonstrated our patented technology through a small prototype, to the kiloampere-level converters driving next-generation computing performance.
Prototypes

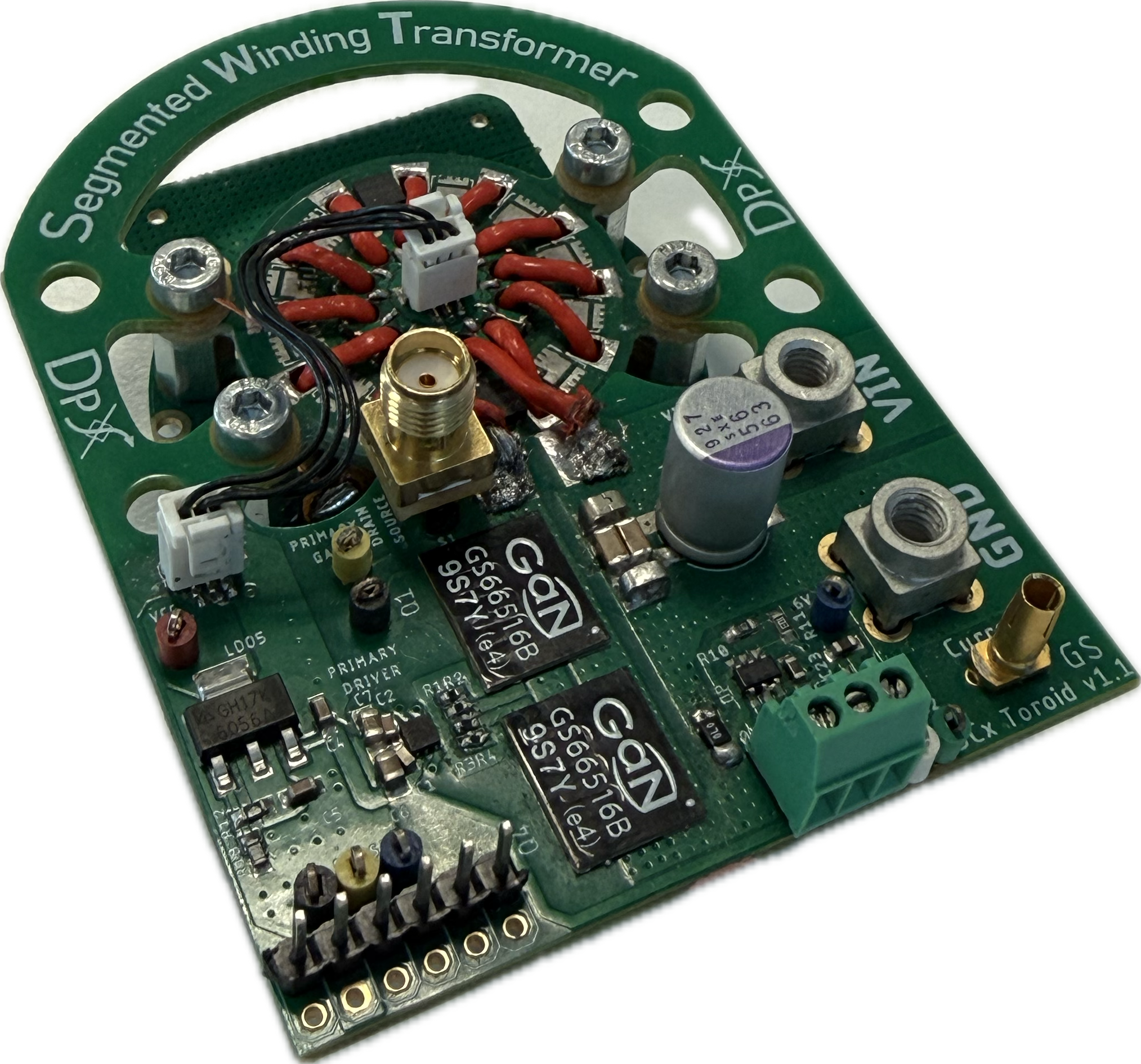

UFO - 2020
Scaling to 200A featuring a custom toroidal transformer architecture
- Input Voltage: 48V
- Output Voltage: 4V
- Output Current: 200A
- Peak Efficiency: 97.4%
- Full Load Efficiency: 94.7%

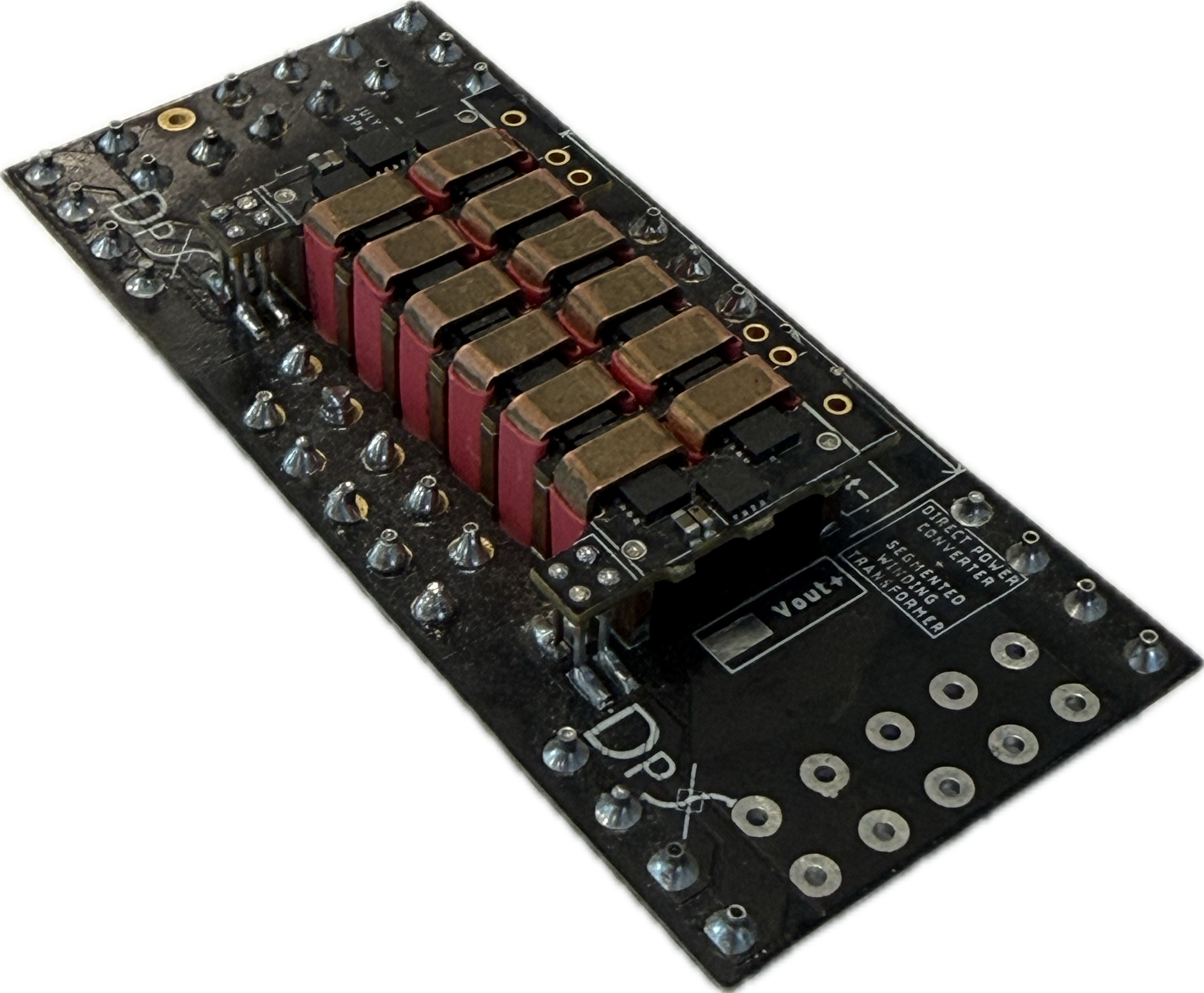

The Animal - 2021
Achieving 500A output with a custom-made rectangular transformer
- Input Voltage: 12V
- Output Voltage: 1V
- Output Current: 500A
- Peak Efficiency: 97.71%
- Full Load Efficiency: 86.03%

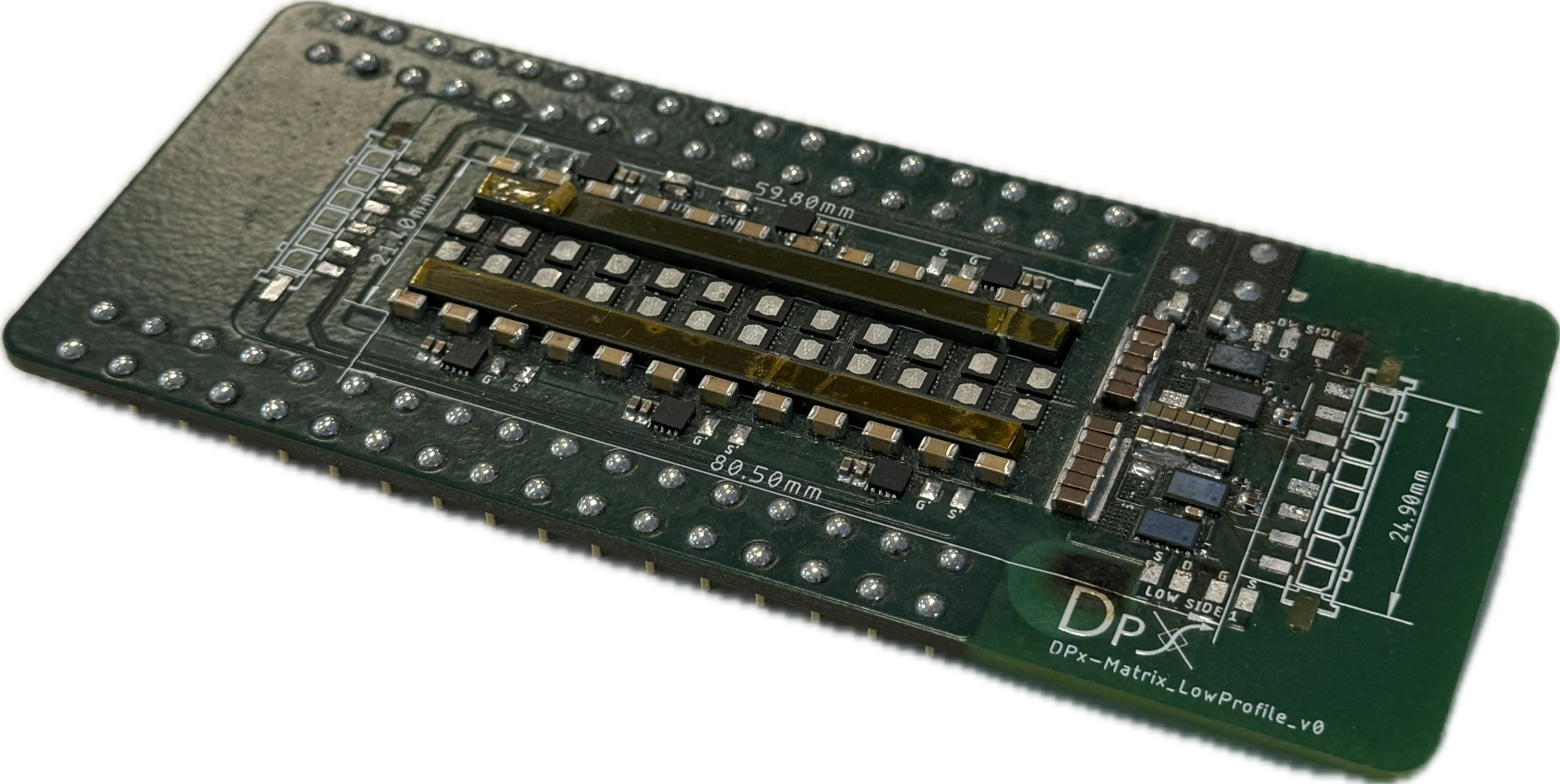

Matrix - 2022
Delivering 500A of current through a standard PCB
- Input Voltage: 24V
- Output Voltage: 1V
- Output Current: 500A
- Peak Efficiency: 97.0%
- Full Load Efficiency: 90.9%

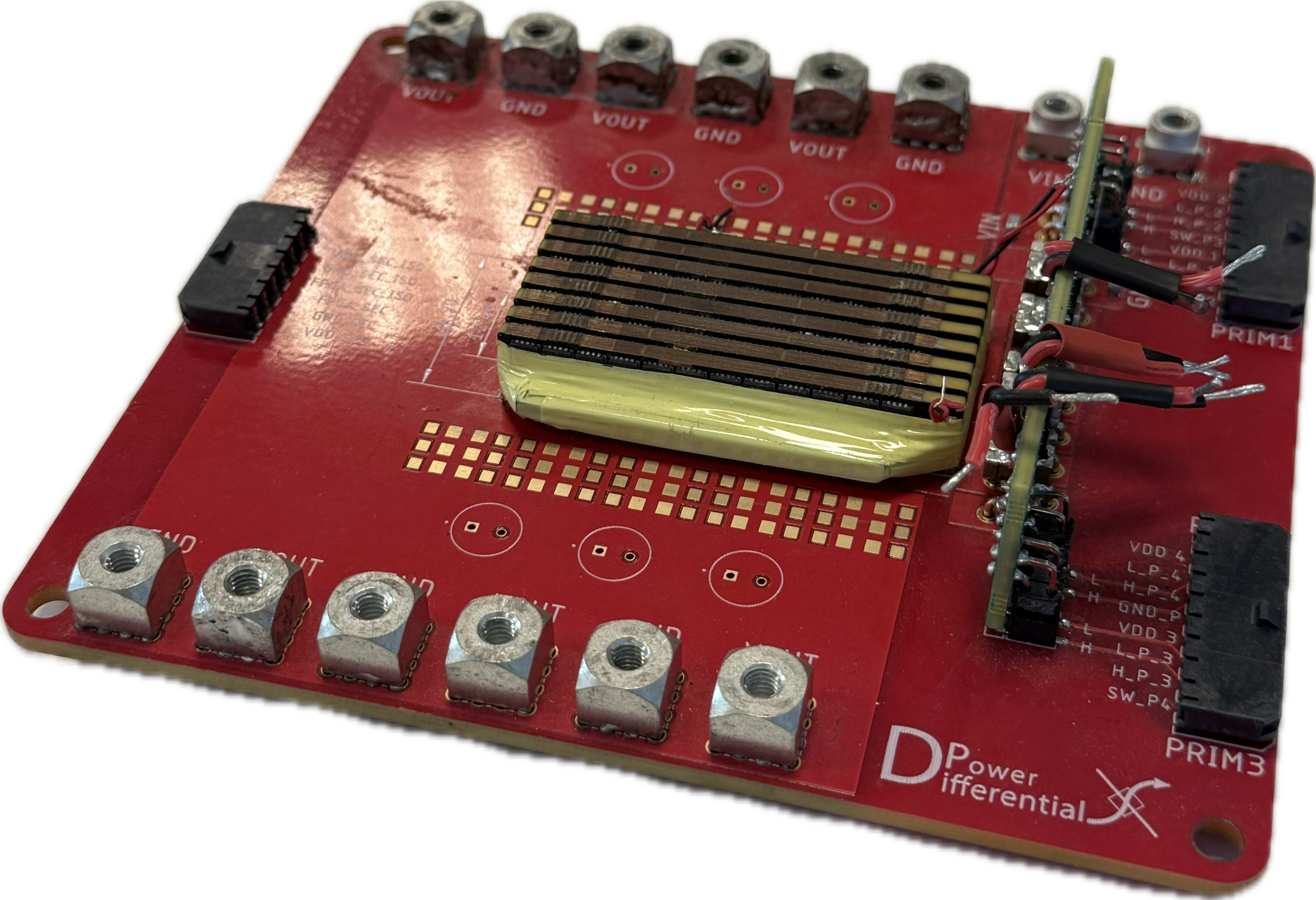

Split - 2023
Dual Matrix Innovation: SWT driven from external primaries
- Input Voltage: 48V
- Output Voltage: 1V
- Output Current: 950A
- Peak Efficiency: 98.75%
- Full Load Efficiency: 88.4%

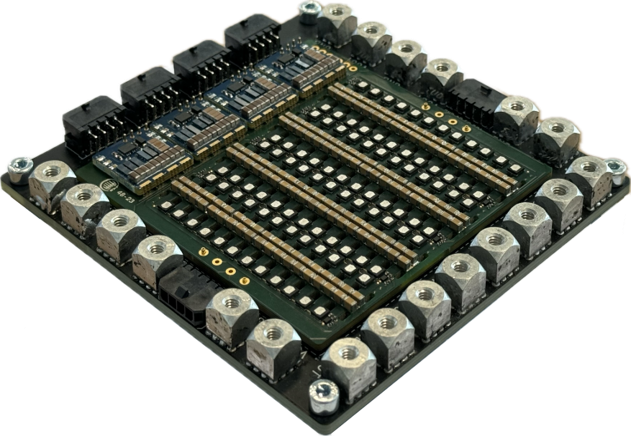

Emerald - 2024
Breaking the kA barrier: Scaling to 2,200A on a standard PCB
- Input Voltage: 48V
- Output Voltage: 1V
- Output Current: 2,200A
- Peak Efficiency: 95.8%
- Full Load Efficiency: 88.8%

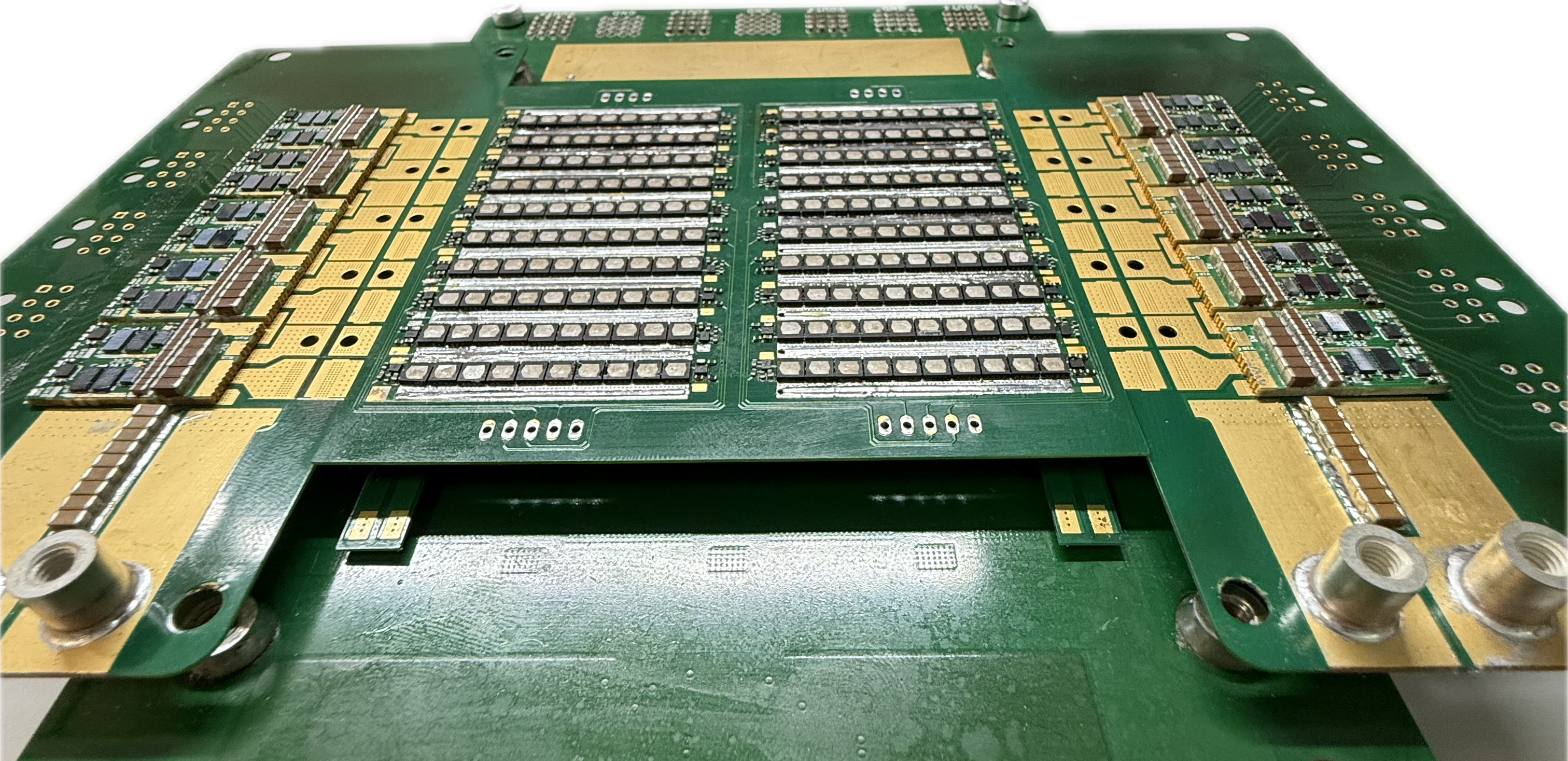

Onyx - 2025
Delivering thousands of Amperes using vertical SWT and custom cell integration
- Input Voltage: 50V
- Output Voltage: 0.7V
- Output Current: 3,000A
- Peak Efficiency: 96.2%
- Full Load Efficiency: 88.6%
- Input Voltage: 400V
- Output Voltage: 0.7V
- Output Current: 1,500A
- Peak Efficiency: 94.2%
- Full Load Efficiency: 92.8%

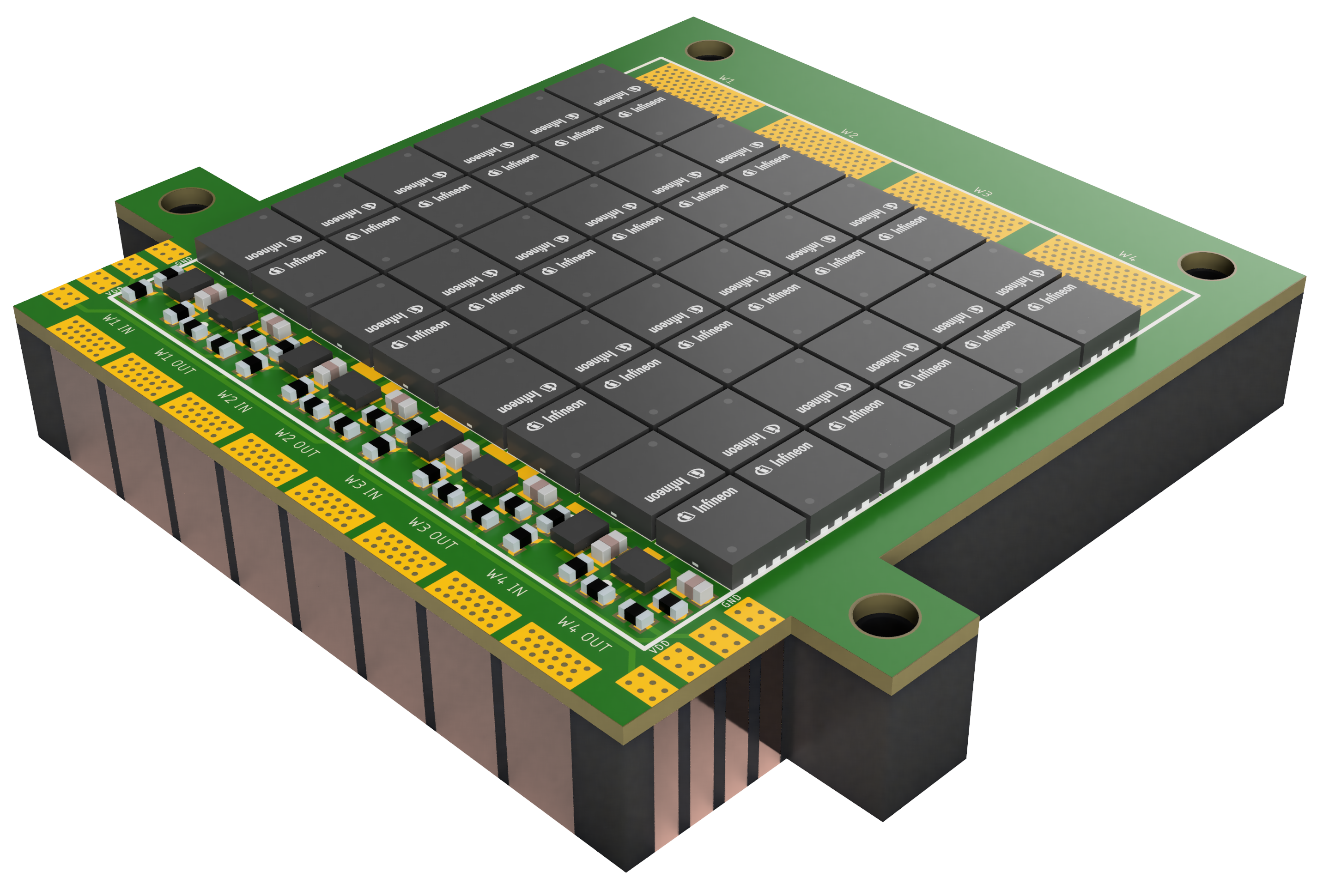

Sapphire - 2026
Flagship Solution
- Input Voltage: 54V
- Output Voltage: 0.6V
- Output Current: 1,700A
- Current Density: 2.4 A/mm2
DC Loads

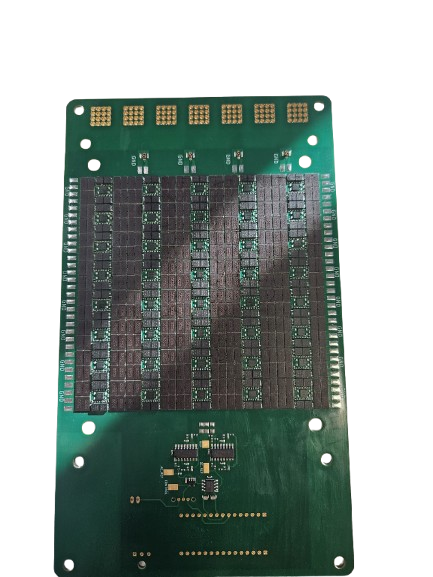

Load Onyx
- Load Modules: 160
- Power Rating: 2 kW
- Dimensions: 110 x 160 mm

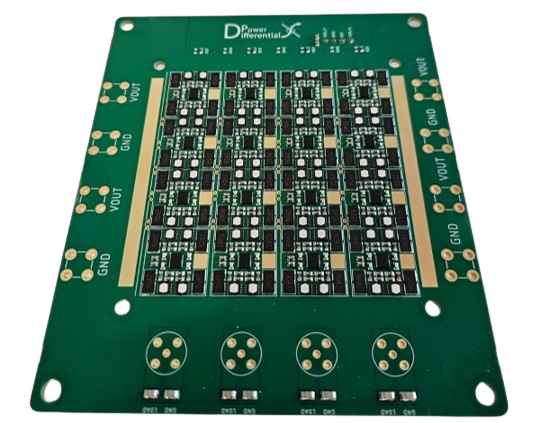

Load Closed Loop
- Load Modules: 60
- Power Rating: 1 kW
- Dimensions: 75 x 75 mm

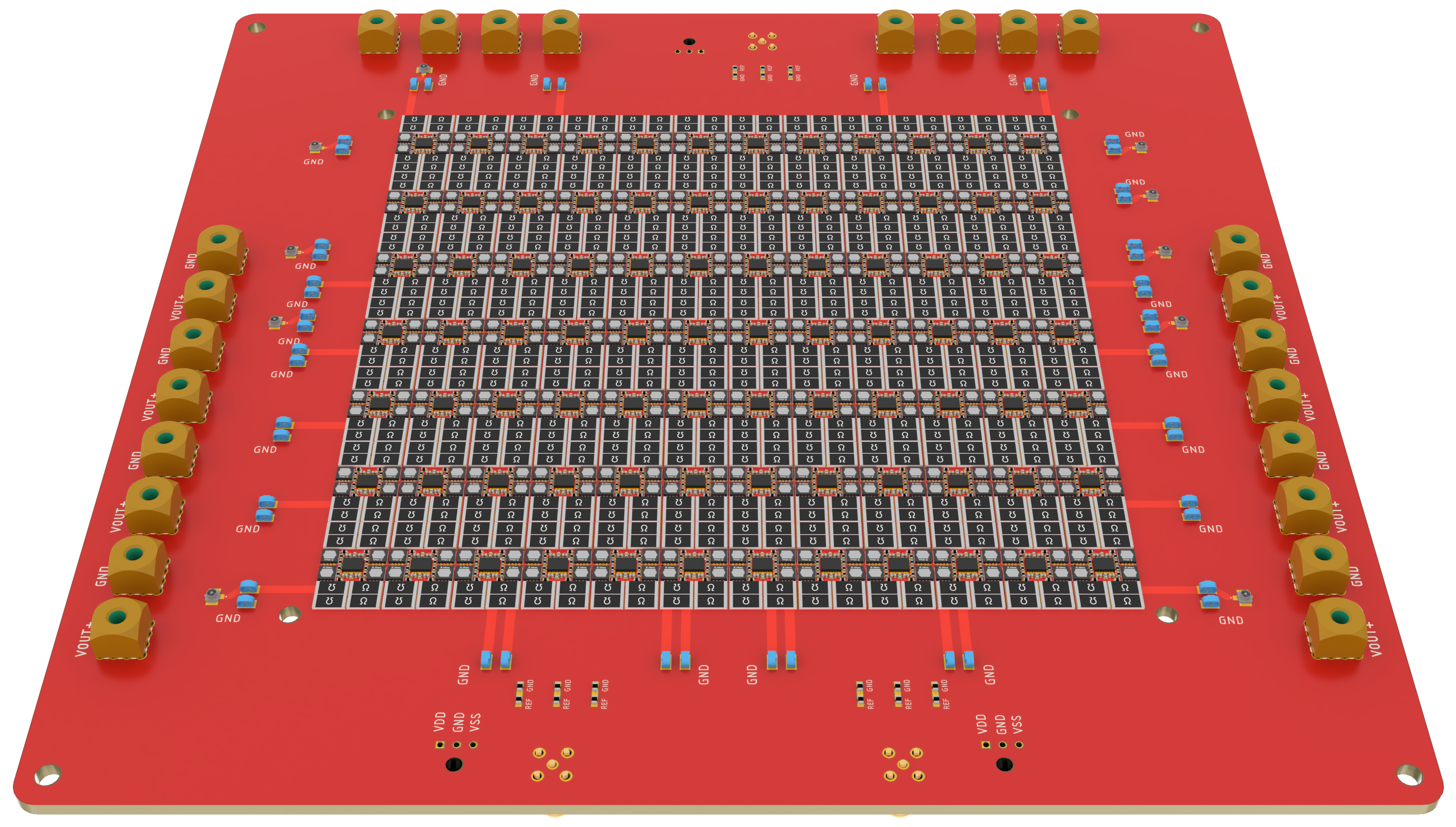

Load Sapphire
- Load Modules: 336
- Power Rating: 4 kW
- Dimensions: 156 x 160 mm
